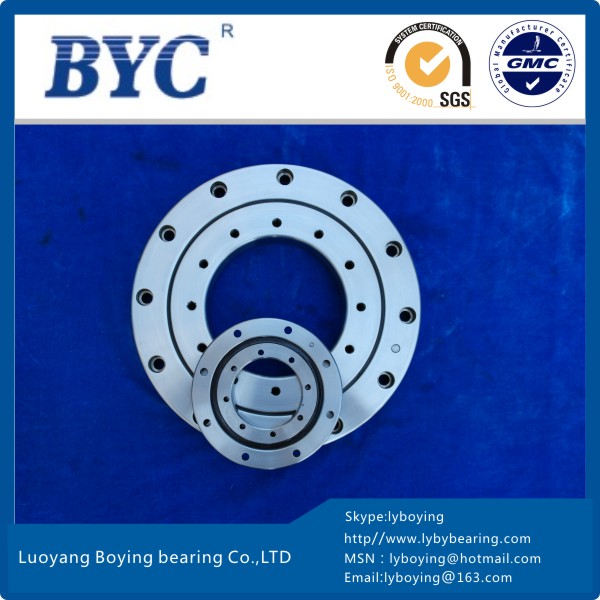

RU148XUUCC0 (IDxODxThick:90x210x25mm) Crossed Roller Bearings\|Robotic Bearings\|BYC
A . Crossed Roller Bearings Parameters
Brand-	BYC
Model number-	RU148XUUCC0
Inner ring(mm)-	90
Outer ring(mm)-	210
Width(mm)-	25
Weight(Kg)-	4.9
Materials-	GCR15/GCR15SiMn
Precision-	P5/P4/P2
Lubrication-	Grease lubrication
Rotating part-	Inner ring/Outer ring
Load direction-	Multi-load
Structure-	Integrated Inner/Outer Ring

B . RU148 Crossed Roller Bearings Specification Sheet

Model Number	Main dimensions						Mounting dimensions		Basic load rating (radial)		weight
	Inner ring d (mm)	Outer ring D(mm)	Roller pitch circle dp(mm)	Width B(mm)	Greasing hole φ	Chamfer r(min)	ds	Dh	C kN	C0 kN	Kg
RU148	90	210	147.5	25	3.1	1.5	133	162	49.1	76.8	4.9

C . RU type Crossed Roller Bearings Details
Product Features	BYC Crossed roller bearings are lightweight, compact bearings with thinnest possible inner and outer rings with high rigidity, because of its vertical arrangement of cylindrical rollers with a 90°V groove through the separate spacers in the deep groove rolling surface. This special design allows just one bearing to carry loads in all directions including radial, axial and moment loads.
Series Introduction	RU special type is a bearing with integrated inner- and outer ring. It is being used in cases where high rotational accuracy of both the inner- and outer rings is required.
Series Model No.	RU42(CRBF2012),RU66(CRBF3515),RU85(CRBF5515), RU124,RU124G,RU124X(CRBF8022), RU148,RU148G,RU148X RU178,RU178G,RU178X RU228,RU228G,RU228X RU297,RU297G,RU297X RU445,RU445G,RU445X
Applications	Product Application •Industrial Robotic arm,Reducer drive •precision Turntable,NC rotary table •Rotation part of Machine tools •Inspection instrument,Medical equipment • Aviation equipment,Military radar etc

D . Installation for Cross roller Bearings
Installation for Cross roller Bearings-Click Here
